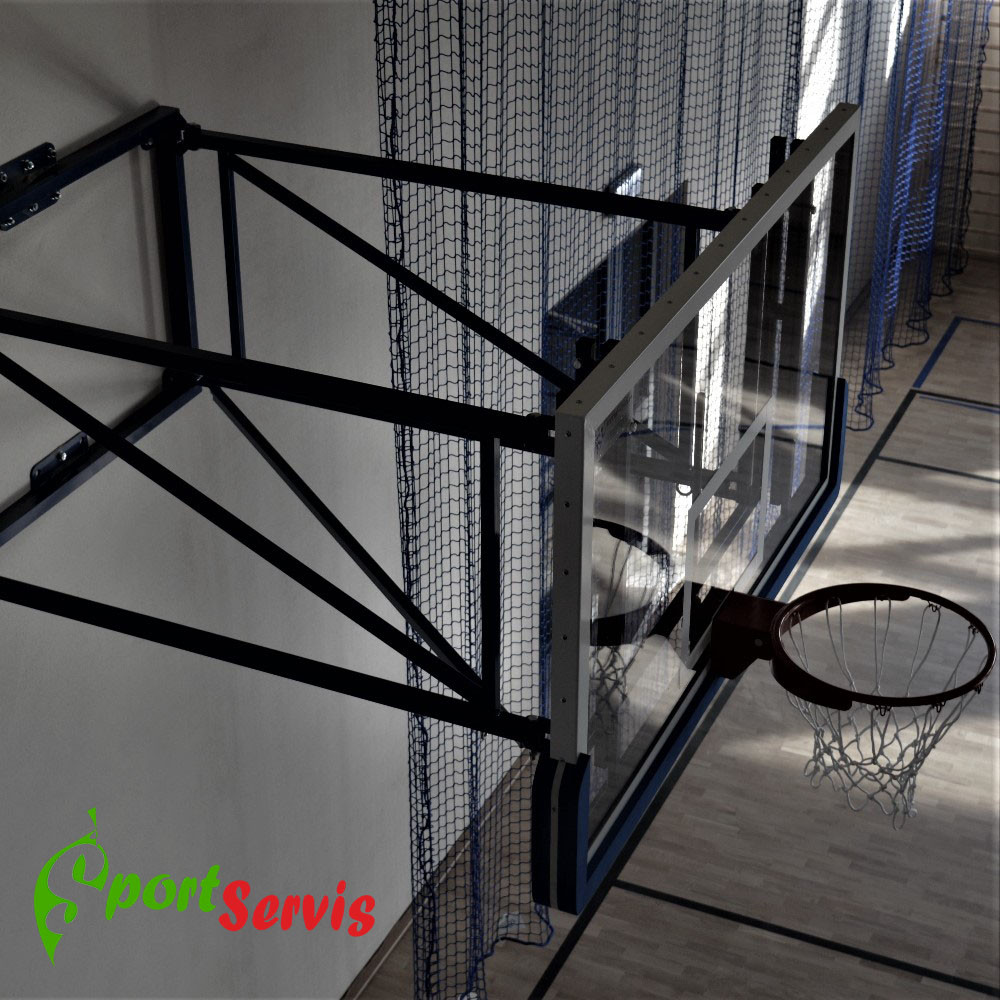

The basketball construction, backboard projection between 100-180cm

The basketball construction, side folded to the wall, project of backboard between 100-180cm, fixed to the wall or post.

The projection of the structure is the distance between the attachment point of the frame of the structure (in the case of wall constructions it is a wall or a post, or a steel sub-construction) and the line of the playing field / basketball court counting outside of that line. When using these overhangs, there is no need to install additional support points such as steel cords.

The structure is powder painted, fire, the color is available to order from the RAL palette.

The use of articulated joints allows the structure to be folded horizontally on the wall using brackets. By pulling down the handle, the lock is released, the second handle placed in the eye in the opposite frame is used to fold / unfold the structure.

Installation of the structure to the reinforced concrete wall is carried out using M12 steel expansion anchors, in the case of a wall made of slotted hollow bricks, fastening is carried out using an M12 steel anchor for fastening with a chemical anchor (polyester anchoring mass)

The position protection is made in the form of a telescope. The design is intended for use mainly in sports halls, as well as outdoors.

The design is adapted to all types of boards and rims. Additional equipment is a mechanism for adjusting the height of the board in the range of 2.6 m (junior) and 3.05 m (senior). To unfold / fold the basket structure, use a special handle, which should be inserted into the eyelet of the structure securing / locking. By pulling down the handle the lock is released, pull it sideways by the handle until the structure is fully folded on the wall.

The basketball backboard, height adjustment mechanism, hoop and net are a separate item in our offer. Due to the nature of the product, the constructions are made to order, after learning about the possibilities of their assembly.
